Google Data Studio Report Tutorial

Reports in Google Data Studio are used to tell stories with data

Every report you create should have some purpose. The purpose can be to provide actionable insight, give recommendations or persuasion.

  • The person who creates the report is called the ‘report author’ or ‘report creator’.
  • The person who edits the report is called the ‘report editor’.
  • The person who consumes the report is called the ‘report viewer’.

Best Practices for creating a report in Data Studio

Following are some best practices for creating a report in Data Studio:

  1. Understand who your report is meant for.
  2. Keep it short and simple.
  3. Use a report template whenever you can to create a new report.
  4. Avoid pulling data directly from a data platform into your reports.
  5. Avoid charting data for the current day in your reports.
  6. Avoid using functions and calculated fields in your reports.
  7. Distribute related charts across multiple pages.

#1 Understand who your report is meant for

Before you create and send any report always ask yourself following three questions:

  • Why I am reporting, what I am reporting? I am reporting because …..
  • How does this affect the recipient(s)? I am presenting this report to the board of directors because……
  • What actions recipient(s) should take on the basis of this report? I am presenting this report so that he takes this action………

For example, when you choose to report ‘bounce rate’ to a CEO then what actions you want him to take?

  • Do you want him to optimize the marketing campaigns and reduce the bounce rate?
  • Do you want him to fire the marketing manager because he is responsible for bringing crappy traffic to the website?

If you can’t think of any action that the CEO should take on the basis of the bounce rate then why you are reporting him the bounce rate?

As we move up in an organization hierarchy (esp. in big companies) we tend not to bug senior management with minute details.

Minute details are for the managers (because they have to manage the campaigns) or for the colleagues (because they are directly working on optimizing the campaigns).

So we should avoid presenting tactical dashboards (like copy-paste versions of Google Analytics screenshots) to senior management and present them only business bottom line impacting insight, possibly in few lines of plain English.


Get the ebook on Google Data Studio (50+ Pages)


#2 Keep it short and simple

I can’t put enough stress on the importance of simplicity. If your reports are not easy to understand than it won’t have any impact. It is as simple as that. So stay away from using industry jargon and ambiguous words as much as possible.

If you can’t avoid using a technical term then explain it first each time you use it. Don’t assume people already know about it because you trained them once.

It took me several days before I could successfully retain the definition of a bounce rate in my memory when I first started to play with web analytics.

So these technical terms are not as easy to remember as you may think especially for the people who know little to nothing about web analytics.

Present less fluff and more substance. If your reports are 10 pages long then no one is going to read them let alone take any action.

#3 Use a report template whenever you can to create a new report

If you create a new report from scratch then you would need to spend a lot of time creating the layout and format of your report.

You would need to spend a lot of time creating and bringing individual report components (like tables, scorecards, charts, etc) together in a way that is visually appealing and at the same time make your report meaningful and easy to understand.

However, if you use a report template, then you just need to do two things (most of the time):

  1. Change the data source
  2. Do some minor cosmetic changes to the report (like change the name of the report, add your company logo, etc).

#4 Avoid pulling data directly from a data platform into your reports

A rookie mistake that most Data Studio users make is that they pull data directly from a data platform into Data Studio and then try to manipulate it there.

Data Studio is not meant for data manipulation. It is not a spreadsheet.

When you manipulate data in Data Studio, it slows down your report. This is especially true for large data sets.

Manipulating data in a spreadsheet is a lot easier than manipulating data in Data Studio. When you choose to manipulate data in Data Studio, you make it unnecessarily hard to use.

That is why we first pull the data from a data platform into a spreadsheet (like Google Sheets or Excel) and manipulate the data there, and only after that use that data in Data Studio.

#5 Avoid charting data for the current day in your reports

By default, Google Data Studio uses UTC standard time. If your data set doesn’t use UTC, you may see discrepancies when charting data for the current day (due to differences between UTC and your timezone).

Such discrepancies increase significantly when you live farthest from London (like in Australia, New Zealand, etc.) where the time difference between UTC and your timezone is pretty big.

So if you live in Australia and you pull the data for the current day (from the data set which uses different timezone say ‘UTC’) in data studio, it may not show you any data for ‘today’.

Moreover, I don’t see any real benefit of analyzing an incomplete data set.  So avoid charting data for the current day in Data Studio.

#6 Avoid using functions and calculated fields in your reports

The use of functions in calculated fields can greatly increase the load time of your reports in the data studio. Even the use of calculated fields themselves can greatly increase the load time of your data studio reports.

If you want to do any type of data manipulation (whether it is aggregation, mathematical calculations, manipulating string data, etc) do it in Google Sheets and not in data studio.

#7 Distribute related charts across multiple pages

By default, a Google data studio report is made up of only one page. But you can add multiple pages to a Data Studio report. Additional pages provide a mechanism to reduce the complexity of any given page.

It could be tempting to add all of your charts and other components onto one page.

However, spreading out your report across multiple pages helps in minimizing the complexity of any given page. It makes your report much easier to consume.

Six methods to create a new report in Data Studio

You can create a new Data Studio report in the following ways:

  1. From the home page
  2. From the template found in the template gallery.
  3. From the template found in the report gallery.
  4. While editing a report
  5. While editing a data source
  6. By making a copy of an existing report

Creating a new report from the Data Studio Home Page

There are two ways to create a new report from the Data Studio Home page:

  1. Via the ‘Create’ drop-down menu
  2. Via the ‘Blank Report’ button

#1 Via the ‘Create’ drop-down menu:

When you logged into Google Data Studio, you see the ‘Create’ drop-down menu on the top left-hand side:

Click on the ‘Create’ drop-down menu button and then click on the ‘Report’ link to create a new report from scratch:

#2 Via the ‘Blank Report’ button

The second way to create a new report from scratch is by clicking on the ‘Blank Report’ button:

Google Data Studio Template Gallery and Report Gallery

If you create a new report from scratch then you would need to spend a lot of time creating the layout and format of your report.

You would need to spend a lot of time creating and bringing individual report components (like tables, scorecards, charts, etc) together in a way that is visually appealing and at the same time make your report meaningful and easy to understand.

However, if you use a report template, then you just need to do two things (most of the time):

  1. Change the data source
  2. Do some minor cosmetic changes to the report (like change the name of the report, add your company logo, etc).

The template gallery list ready to use report templates. Use these templates to create fully functional and attractive templates in seconds.

You can find the Google Data Studio template gallery in two places:

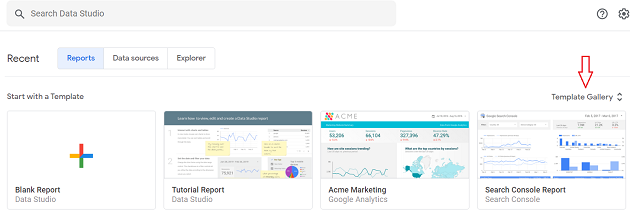

#1 When you logged into Google Data Studio, you see the template gallery link on the right-hand side:

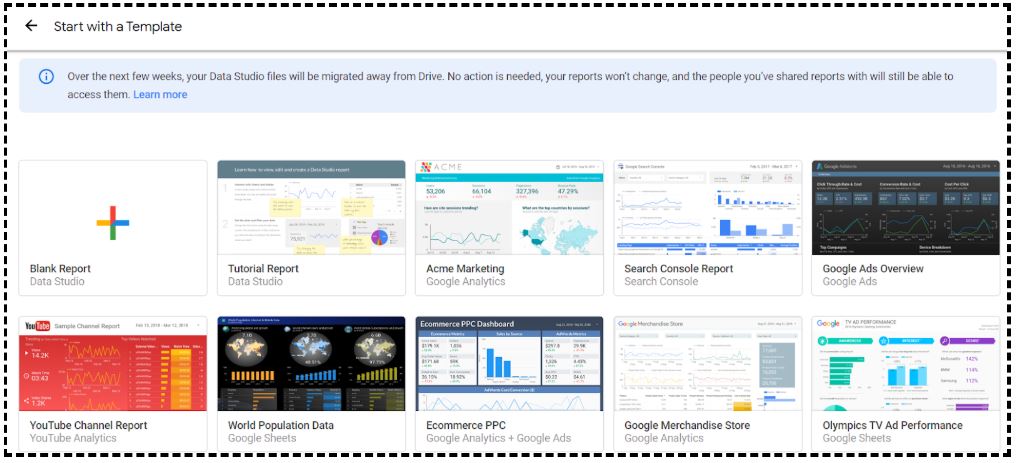

When you click on this link, you can see the list of available report templates:

#2 The second place to look for report templates is the Data Studio Report Gallery: https://datastudio.google.com/gallery

The Data Studio report gallery lists report templates under the following four categories:

  1. Featured (these are the reports templates featured by Data Studio).
  2. Marketing Templates
  3. Community (Data Studio report templates built by the community)
  4. Community Visualizations – Data Studio reports with Community Visualizations

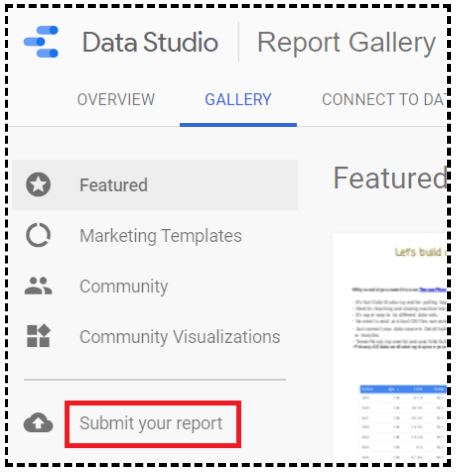

If you want to submit your own report to the Data Studio Report Gallery then click on the ‘submit your report’ link and then follow the on-screen instructions:

Creating a new report via template gallery

Follow the steps below:

Step-1: Navigate to Google Data Studio: https://datastudio.google.com/navigation/reporting

You should now see the available report templates on the right-hand side:

Step-2: Click on one of the report templates say ‘Acme Marketing’:

Step-3: Check whether the template meets your requirements and if it does then click on the ‘Use Template’ button on the top right-hand side:

Step-4: Select your data source from the ‘New Data Source’ drop-down menu:

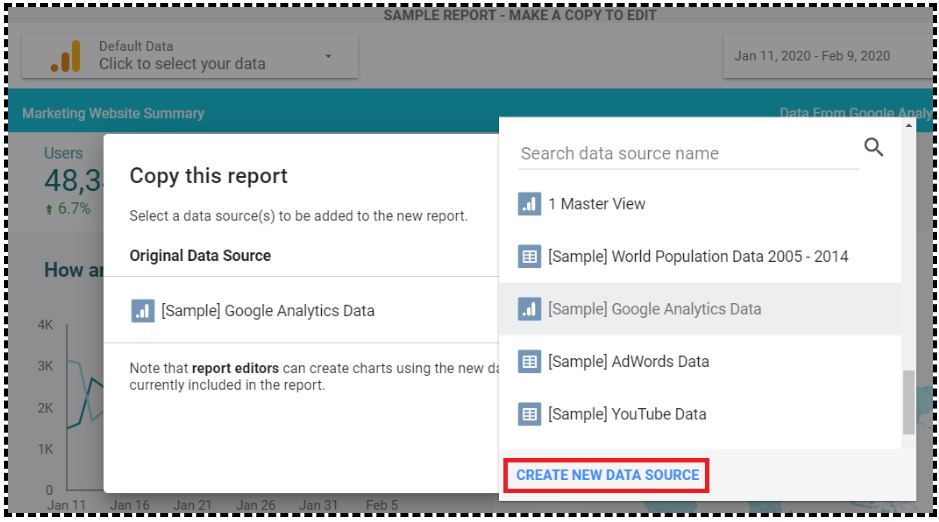

Click on ‘CREATE NEW DATA SOURCE‘ link, if you do not have an existing data source to select:

Step-5: Click on the ‘Copy Report’ button.

Your new report would look like the one below:

At this point you can do the following things with this report:

  • Change the name of the report.
  • Add your company logo.
  • Add/edit/remove individual components of the report.
  • Change the layout/formatting to meet your requirements

Needless to say, you need to know the Google Data Studio user interface really well before you can use an existing report template as your report.

Creating a new report via report gallery

If you want to use a template from the report gallery to create a new report then follow the steps below:

Step-1: Navigate to  https://datastudio.google.com/gallery

Step-2: Select the template you want to use. Let’s say we want to use the ‘GA Acquisition Overview’ template (listed under the ‘Marketing Templates’ gallery):

Step-3: Click on the ‘GA Acquisition Overview’ template. This action will open the report template in a new tab.

Step-4: Click on the ‘Make a copy of this report’ button:

Step-5: Select your data source from the ‘New Data Source’ drop-down menu:

Click on ‘Create a new data source‘ link, if you do not have an existing data source to select:

Step-6: Click on the ‘Copy Report’ button.

Your new report would look like the one below:

At this point you can do the following things with this report:

  • Change the name of the report.
  • Add your company logo.
  • Add/edit/remove individual components of the report.
  • Change the layout/formatting to meet your requirements

Creating a new report while editing a report

There are two ways you can create a new report while editing an existing report:

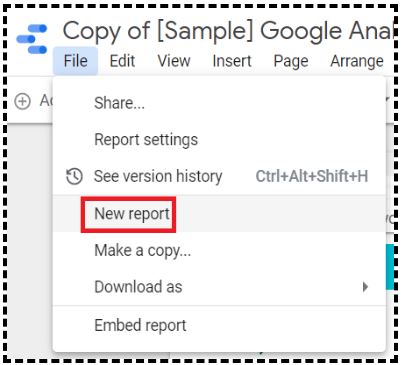

#1 While editing an existing report, select File > New report

The new report will open up in a new tab.

Now select an existing data source schema or click ‘Create a New Data Source’ to create a new schema:

Note: You can not add any chart to your report without first adding a data source.

#2 While editing an existing report, select File > Make a Copy

When you copy a report, you get the option of keeping the current data sources attached to that report or replacing them with different data sources:

You can select a new data source from the ‘New Data Source’ drop-down menu:

Click on the ‘Copy Report’ button to complete your process of duplicating an existing report.

When you copy a report, the copy inherits the following components from the original report:

  1. Chart components (like ‘Table’, ‘Scorecard’, ‘Pie chart’, ‘Bar chart’, etc).
  2. Interactive components (like ‘dimensions filters’, ‘date range controls’, ‘data control’,’Google Analytics Segments’ etc)
  3. Design components (like ‘images’, ‘text boxes’, ‘rectangles’, ‘lines’, ‘circles’, etc)
  4. Embedded external components (like ‘videos’, ‘Images’, ‘Google Docs’, etc)
  5. Pages

Note(1): Copying a report does not create copies of its data sources.

Note(2): If you want to use any existing report as a template then just make a copy of it.

Note(3): If you see an ‘(Unknown)’ data source while copying a report then it means that data source schema has not been shared with you and you must select a different data source schema from the ‘New Data Source’ drop-down menu:

Creating a new report while editing a data source schema

You can create a new report from within the data source editor.

Follow the steps below:

  1. Create a new data source schema or edit an existing schema.
  2. Click on the ‘Create Report‘ button on the top right-hand side:

Components of a report in Google Data Studio

A report in Data Studio is made up of one or more pages. By default, a new report is made up of just one page.

Adding another page

If you want to add another page to your report, then follow the steps below:

Step-1: Open an existing report by clicking on its name (under the ‘Reports’ tab):

The report will open in the view mode.

Step-2: Click on the ‘Edit‘ button at the top right-hand side:

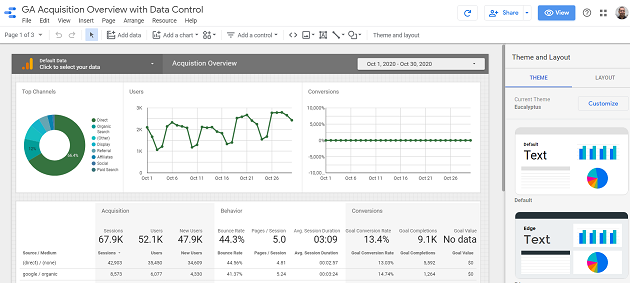

Once you clicked on the ‘Edit’ button, you will see the report in the ‘edit mode‘.

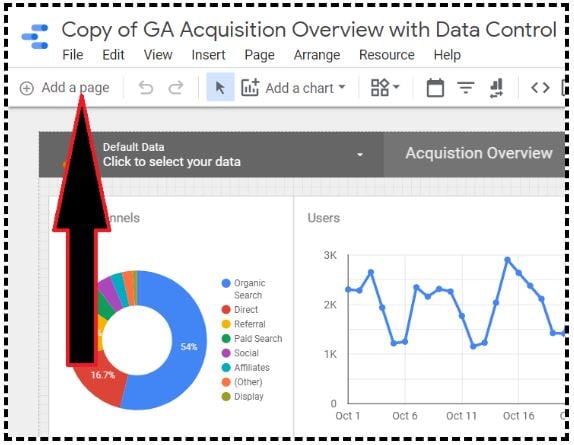

Step-3: Click on the ‘Add a page’ button on the top left-hand side in the report editor:

Once you click on the ‘Add a page’ button, you will be redirected to the new page of your report:

If you want to navigate back to page 1 of the report then click on the ‘Show Page Control‘ drop-down menu:

From the drop-down menu, click on ‘Page 1’:

Each page is made up of canvas.

Here is what the blank canvas looks like:

A canvas is made up of the grid lines.

When we create a report in Data Studio, we add components (like ‘tables’, ‘scorecard’, ‘bar charts’ etc) to this canvas.

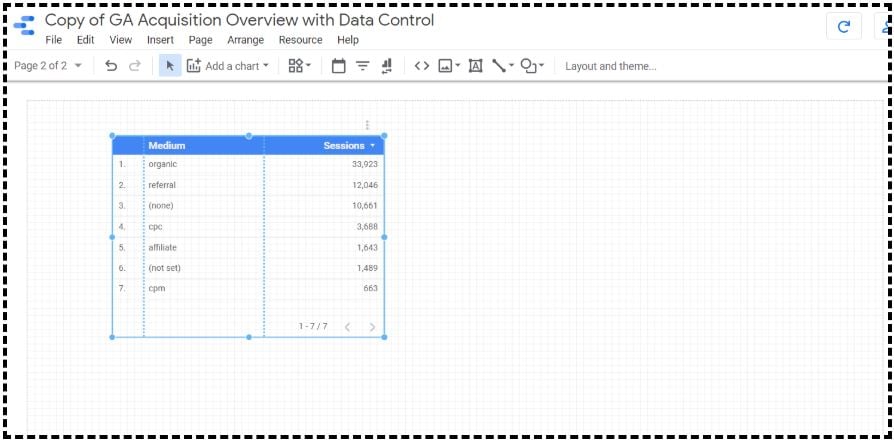

Following is an example of a canvas which contains one component of type ‘table’:

Following is an example of a canvas which contains two components: one table component and one scorecard component:

Each component is made up of one or more fields.

You can change the layout and theme of this canvas through the ‘Layout and Theme panel‘ on the right-hand side:

Related Articles



Do you know the difference between Web Analytics and Google Analytics?


99.99% of course creators themselves don’t know the difference between Web analytics, Google Analytics (GA) and Google Tag Manager (GTM).

So they are teaching GA and GTM in the name of teaching Web analytics.

They just copy each other. Monkey see, monkey do.

But Web analytics is not about GA, GTM.

It is about analyzing and interpreting data, setting up goals, strategies and KPIs.

It’s about creating strategic roadmap for your business.


Web Analytics is the core skill. Google Analytics is just a tool used to implement ‘Web Analytics’.

You can also implement ‘Web analytics’ via other tools like ‘adobe analytics’, ‘kissmetrics’ etc.

Using Google Analytics without the good understanding of ‘Web analytics’ is like driving around in a car, in a big city without understanding the traffic rules and road signs.

You are either likely to end up somewhere other than your destination or you get involved in an accident.


You learn data analysis and interpretation from Web analytics and not from Google Analytics.

The direction in which your analysis will move, will determine the direction in which your marketing campaigns and eventually your company will move to get the highest possible return on investment.

You get that direction from ‘Web analytics’ and not from ‘Google Analytics’.


You learn to set up KPIs, strategies and measurement framework for your business from ‘Web analytics’ and not from ‘Google Analytics’.

So if you are taking a course only on 'Google Analytics’, you are learning to use one of the tools of ‘Web analytics’. You are not learning the ‘Web analytics’ itself.

Since any person can learn to use Google Analytics in couple of weeks, you do no get any competitive advantage in the marketplace just by knowing GA.

You need to know lot more than GA in order to work in Web analytics and marketing field.


So what I have done, if you are interested, is I have put together a completely free training that will teach you exactly how I have been able to leverage web/digital analytics to generate floods of news sales and customers and how you can literally copy what I have done to get similar results.

Here what You'll Learn On This FREE Web Class!


1) Why digital analytics is the key to online business success

2) The number 1 reason why most marketers are not able to scale their advertising and maximize sales.

3) Why Google and Facebook ads don’t work for most businesses & how to make them work.

4) Why you won’t get any competitive advantage in the marketplace just by knowing Google Analytics.


5) The number 1 reason why conversion optimization is not working for your business.

6) How to advertise on any marketing platform for FREE with an unlimited budget.

7) How to learn and master digital analytics and conversion optimization in record time.




My best selling books on Digital Analytics and Conversion Optimization

Maths and Stats for Web Analytics and Conversion Optimization
This expert guide will teach you how to leverage the knowledge of maths and statistics in order to accurately interpret data and take actions, which can quickly improve the bottom-line of your online business.

Master the Essentials of Email Marketing Analytics
This book focuses solely on the ‘analytics’ that power your email marketing optimization program and will help you dramatically reduce your cost per acquisition and increase marketing ROI by tracking the performance of the various KPIs and metrics used for email marketing.

Attribution Modelling in Google Analytics and Beyond
Attribution modelling is the process of determining the most effective marketing channels for investment. This book has been written to help you implement attribution modelling. It will teach you how to leverage the knowledge of attribution modelling in order to allocate marketing budget and understand buying behaviour.

Attribution Modelling in Google Ads and Facebook
This book has been written to help you implement attribution modelling in Google Ads (Google AdWords) and Facebook. It will teach you, how to leverage the knowledge of attribution modelling in order to understand the customer purchasing journey and determine the most effective marketing channels for investment.

Himanshu Sharma

Digital Marketing Consultant and Founder of Optimizesmart.com

Himanshu helps business owners and marketing professionals in generating more sales and ROI by fixing their website tracking issues, helping them understand their true customers' purchase journey and helping them determine the most effective marketing channels for investment.

He has over 12 years of experience in digital analytics and digital marketing.

He was nominated for the Digital Analytics Association's Awards for Excellence. The Digital Analytics Association is a world-renowned not-for-profit association that helps organisations overcome the challenges of data acquisition and application.

He is the author of four best-selling books on analytics and conversion optimization:

error: Alert: Content is protected !!
