# Five Advanced Excel Charts and Graphs

Last Updated: January 10, 2022

[show]

Following are the five advanced Excel charts and graphs:

1. Actual vs. target chart
2. Bullet chart
3. Funnel chart
4. Scatter chart
5. Histogram

## 1. Actual vs. target chart

The ‘Actual vs. target’ chart is a combination chart that requires some formatting. You can’t insert this chart straightaway into your Excel spreadsheet.

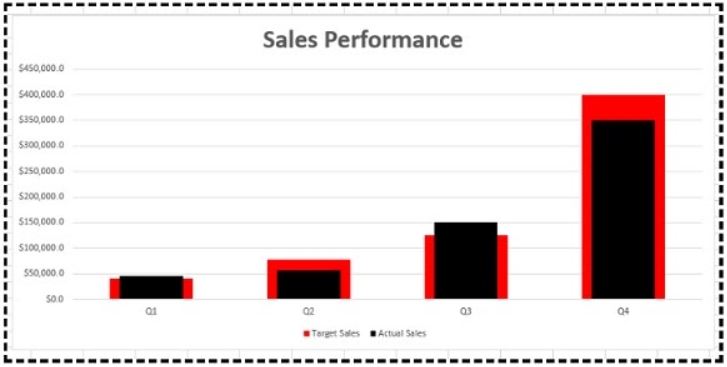

Use this chart when you have got multiple goals and you want to show progress towards each goal. The chart below shows whether target sales were achieved in each quarter:

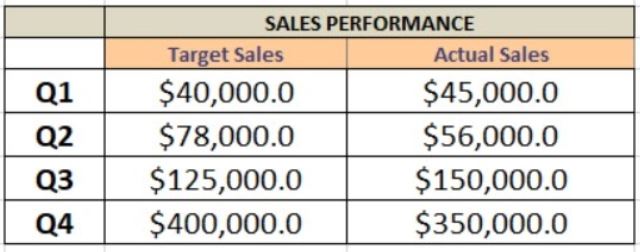

This chart is based on the following data table:

## 2. Bullet chart

A Bullet chart is a combination chart (though it looks like a single bar chart) which is used to show progress towards a single goal using a range of predefined qualitative and quantitative parameters.

You can’t insert this chart straightaway into your Excel spreadsheet and it is also quite tricky to create. If you have multiple goals and you want to show progress towards each goal then use the ‘Actual vs. target’ chart.

But if you have only one goal and you want to show progress towards this goal (by using both qualitative and quantitative data) then use the bullet chart.

A bullet chart can be a vertical bar chart or horizontal bar chart. The choice of vertical or horizontal alignment depends on the space available to use for data visualization.

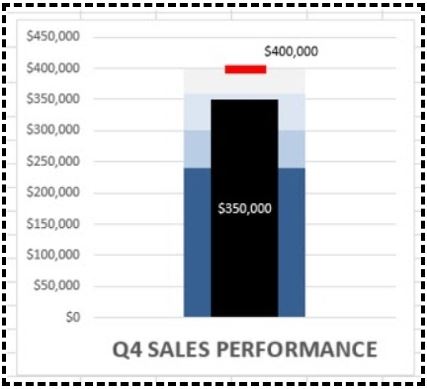

The chart below shows the performance of sales in Quarter 4:

This chart is based on the following data table:

If the actual sales are between \$0 to \$240,000 then sales performance is considered ‘Poor’.

If the actual sales are between \$240,000 to \$300,000 (\$240,000 + \$60,000) then it is considered ‘Fair’.

If the actual sales are between \$300,000 to \$360,000 (\$240,000 + \$60,000 + \$60,000) then it is considered ‘Good’.

If the actual sales are between \$360,000 to \$400,000 (\$240,000 + \$60,000 + \$60,000 + \$40,000) then it is considered ‘Excellent’.

## 3. Funnel chart

As the name suggests the funnel chart is used for funnel visualization. It is perfect for showing lead funnel and sales funnels. This chart is available in MS Excel (2016 and above). You just need to select your data table and then insert the ‘Funnel’ chart.

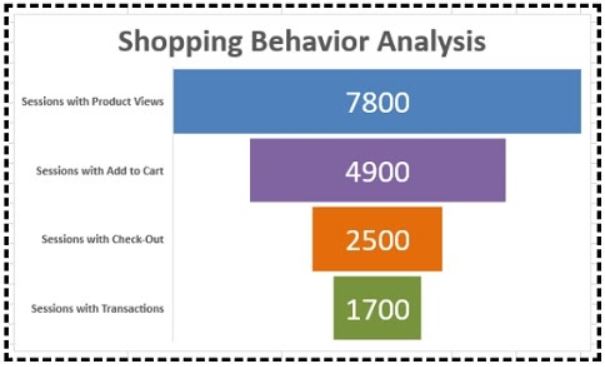

The chart below shows different stages of the purchase funnel and how user moved from one stage to the next:

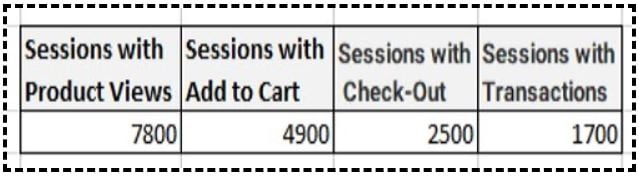

This chart is based on the following data table:

## 4. Scatter chart

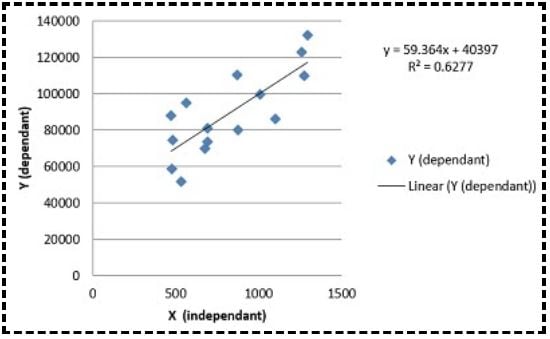

Consider using a scatter chart when you want to analyze and report the relationship/correlation between two variables:

From this chart, we can conclude that the relationship between the two variables (‘x’ and ‘y’) is linear. What that means, as the value of the variable ‘x’ increases there is a corresponding increase in the value of the variable ‘y’.

Create a scatter chart only when there are ten or more data points on the horizontal axis. The more data points the better it is for a scatter chart. Conversely, just a few data points (like five or six data points) are not good enough for creating a scatter chart.

Use a scatter chart when you want to show ‘why’. For example: why revenue is correlated with average order value or why conversion rate is correlated with the number of transactions.

## 5. Histogram

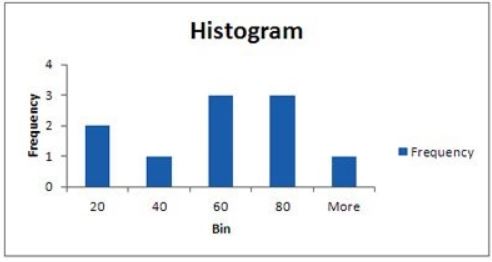

Use a histogram to show frequency distribution for quantitative data:

Note: You would need to install the Analysis ToolPak in order to create a histogram in Excel.
